單片法蘭
優點：
描述：
1) 尺寸:
1/2'' ~ 6''; 20mm ~ 160mm ; DN15 ~ DN150
2) 標準: DIN, JIS
3) 連接: 插口
4) 材質和顏色 : PVC(深灰色), CPVC(淺灰色)
5) 操作溫度: PVC(0~55℃); CPVC(0~95℃)
優點：
描述：
1) 尺寸:
1/2'' ~ 6''; 20mm ~ 160mm ; DN15 ~ DN150
2) 標準: DIN, JIS
3) 連接: 插口
4) 材質和顏色 : PVC(深灰色), CPVC(淺灰色)
5) 操作溫度: PVC(0~55℃); CPVC(0~95℃)
|

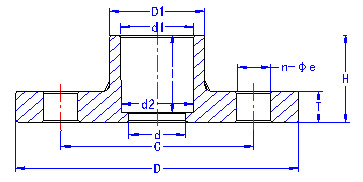

尺寸 |
D |
D1 |
C |
d |
d1 |
d2 |
H |
T |
I |
n-Φe |
||||
|
DIN |
JIS |
DIN |
JIS |
DIN |
JIS |
DIN |
JIS |
|||||||
|
1/2'(15) |
95.00 |
32.00 |
65.00 |
70.00 |
15.00 |
20.30 |
22.40 |
20.10 |
21.73 |
35.00 |
14.00 |
32.00 |
4-15 |
4-15 |
|
3/4'(20) |
105.00 |
35.00 |
75.00 |
75.00 |
20.00 |
25.30 |
26.45 |
25.10 |
25.69 |
40.00 |
15.00 |
37.00 |
4-15 |
4-15 |
|
1'(25) |
125.00 |
42.00 |
85.00 |
90.00 |
25.00 |
32.30 |
32.55 |
32.10 |
31.70 |
45.00 |
16.00 |
40.00 |
4-19 |
4-19 |
|
1?'(32) |
140.00 |
52.00 |
100.00 |
100.00 |
32.00 |
40.30 |
38.60 |
40.10 |
37.65 |
49.00 |
16.00 |
44.00 |
4-19 |
4-19 |
|
1?'(40) |
150.00 |
62.00 |
110.00 |
105.00 |
43.00 |
50.30 |
48.70 |
50.10 |
47.74 |
59.00 |
18.00 |
54.00 |
4-19 |
4-19 |
|
2'(50) |
165.00 |
76.00 |
125.00 |
120.00 |
55.00 |
63.30 |
60.80 |
63.10 |
59.78 |
66.00 |
20.00 |
61.00 |
4-19 |
4-19 |
|
2?'(65) |
185.00 |
90.00 |
145.00 |
140.00 |
65.00 |
75.30 |
76.60 |
75.10 |
75.68 |
70.00 |
22.00 |
61.00 |
4-19 |
4-19 |
|
3'(80) |
200.00 |
108.00 |
160.00 |
150.00 |
80.00 |
90.30 |
89.60 |
90.10 |
88.55 |
73.00 |
22.00 |
65.00 |
8-19 |
8-19 |
|
4'(100) |
220.00 |
132.00 |
180.00 |
175.00 |
100.00 |
110.40 |
114.70 |
110.10 |
113.60 |
93.00 |
22.00 |
84.00 |
8-19 |
8-19 |
|
5'(125) |
250.00 |
162.00 |
210.00 |
210.00 |
125.00 |
140.50 |
140.85 |
140.20 |
139.64 |
114.00 |
24.00 |
103.00 |
8-19 |
8-23 |
|
6'(150) |
285.00 |
187.00 |
240.00 |
240.00 |
150.00 |
160.50 |
166.00 |
160.20 |
164.63 |
142.00 |
26.00 |
130.00 |
8-23 |
8-23 |
|
10'(250) |
395.00 |
309.00 |
350.00 |
—— |
250.00 |
280.90 |
—— |
280.30 |
—— |
156.00 |
28.00 |
147.00 |
12-23 |
—— |
